Module 2 - Incorporating the Auxiliary Equipment

Introduction

This module of the Luna OS6 manual covers the configuration of auxiliary equipment that is required in the delivery of a typical working system:

The auxiliary equipment that will have to be configured for a standard system are:

1. Rack mounted (R/M) switch Gigabit Ethernet Switch (GES).
2. Ethernet Controlled Power Supply (ECPS).
3. Network Time Protocol (NTP) Server.

note

This module is not to be confused with Module 8 of the manual that covers ancillary equipment, which details items that MAY be called up by a specific deployment configuration.

Network and Switches

A system will generally include a local switch - to manage all the hosted equipment - together with the provision of a backbone network. The switch also performs auto negotiation from 1GbE down to 100 base T and 10 base T for auxiliary equipment such as an ECPS and the NTP / SMS unit(s).

In specific circumstances these may be combined and the network design will be captured on the related systems network drawing which may be provided as part of a proposal from the sales contact.

1GbE - Gigabit Ethernet Switch - GES

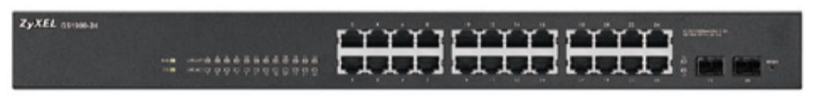

The recommended GES has 2x SFP connections. We recommend that each equipment location has a dedicated GES for the OS6 system.

To configure the IP address of the GES, the following process should be followed:

1. Make sure both your computer and switch are powered ON.
2. Manually configure an IP address on your computer's NIC card, use an IP address between 192.168.1.2 ~ 192.168.1.254, the subnet mask is 255.255.255.0, no gateway address (router address) or DNS server addresses are necessary.
3. Open an internet browser on the computer and enter http://192.168.1.1 in the address bar then hit the ENTER/RETURN key. A login screen will open asking for user credentials, the default username is admin and password is 1234.
4. On the status page you will see four icons on the far left for the four different menus. Mouseover the mouse over each icon to display the menu name. Click the "Configuration" menu icon.
5. To change the switches IP address to match your networks IP scheme go to menu Configuration → System → IP.
6. Set the desired IP.

Ethernet Controlled Power Supplies - ECPS

This is a recommended piece of equipment for remote stand-alone and networked deployments. The ECPS is connected to a main power supply and features a network connection (TCP/IP) to allow the individual power feeds to be controlled remotely. The IP address of the ECPS needs to be changed to reflect the approved system documentation.

Details of the current type of ECPS used by OptaSense:

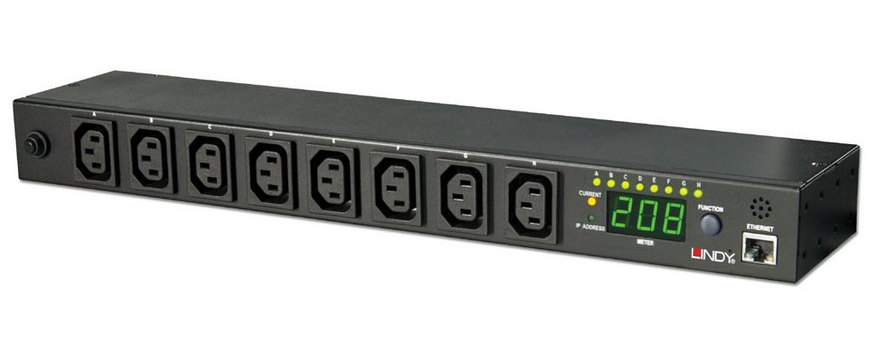

1. OPN_90025_REV_1 - Lindy IP Power Switch Classic 8 – Link to manual

Lindy IP Power Switch Classic 8

Web Interface

The default way to obtain an IP address is via DHCP. If the unit is unable to obtain an IP from a present DHCP server then the IP address will remain at the default setting: 192.168.0.216. To check the IP address of the ECPS, hold the function key down at the front of the ECPS until the second beep is heard. Then each of the four octets of the IP address will show in succession.

Access the web interface via a web browser by entering the IP address of the ECPS. The default ID is snmp and password is 1234.

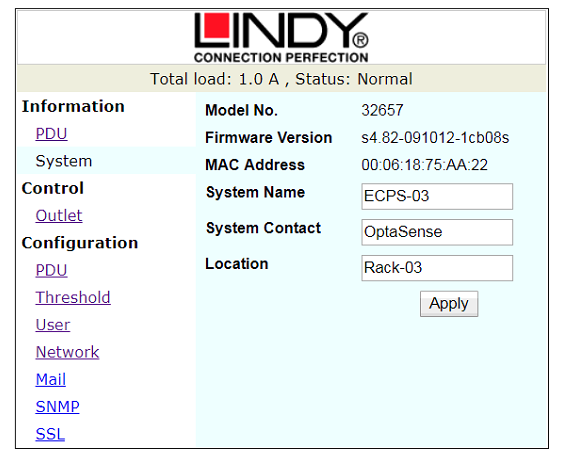

The figure above shows the initial screen that is displayed by the ECPS upon login and the top bar shows the total load currently applied and the operational status.

Model Number - This is the model number of the ECPS.

Firmware Version - Displays the version of firmware loaded to the ECPS.

System Name - This is a configurable field and should be set as per the approved system documentation.

System Contact - This is a configurable field and should initially be set to Luna.

Location - This is a further configurable field and should be set to the ECPS location as per the approved system documentation.

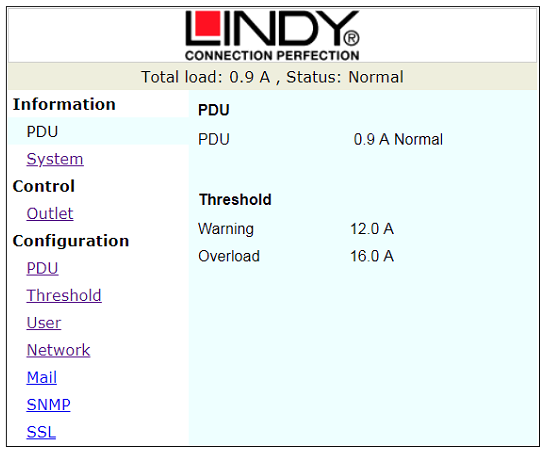

The PDU tab shown in the figure above re-iterates the information shown in the top bar. It also displays the levels that the ECPS will give warnings about the load applied.

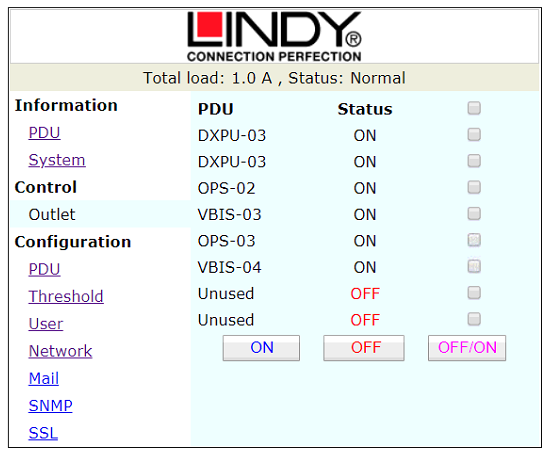

The Control – Outlet tab shown above displays the current status of each port on the ECPS. This is also the tab where the outlets can be remotely controlled – in this example there are 6 ports connected and powered, and 2 unused.

Configuration

The following steps outline how the device is configured.

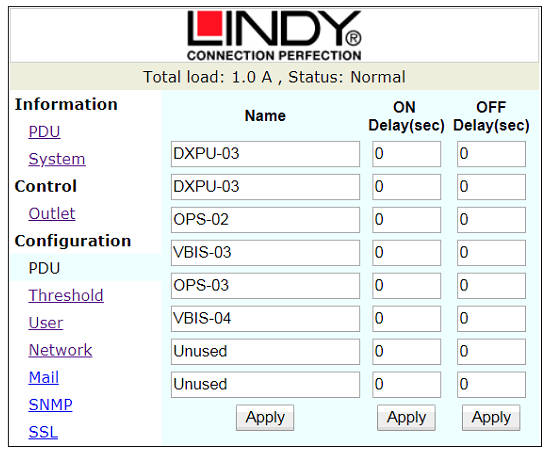

The PDU tab of the configuration (shown above) is where ports can be named – they should be set as per the Power Schedule in the project documents pack. By default, the on / off delay are left at the default setting of 0.

The threshold tab (shown above) is where the levels are set for warning and overload on the ECPS – this should not be changed unless there is a specific requirement to do so.

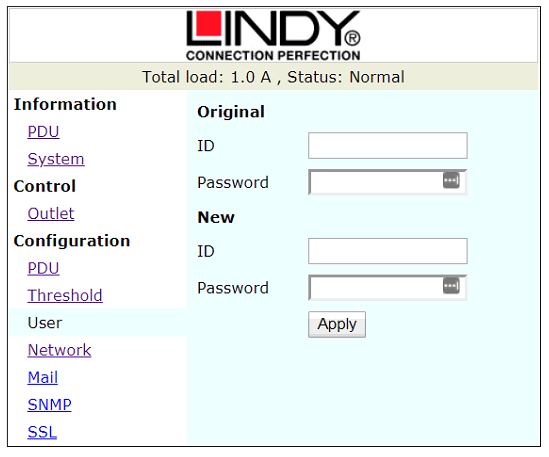

The User tab shown above is where the username and password are configured.

The default ID is “snmp” and password is “1234”.

This should be changed to the username and password as defined in the project specific Password List / system documentation.

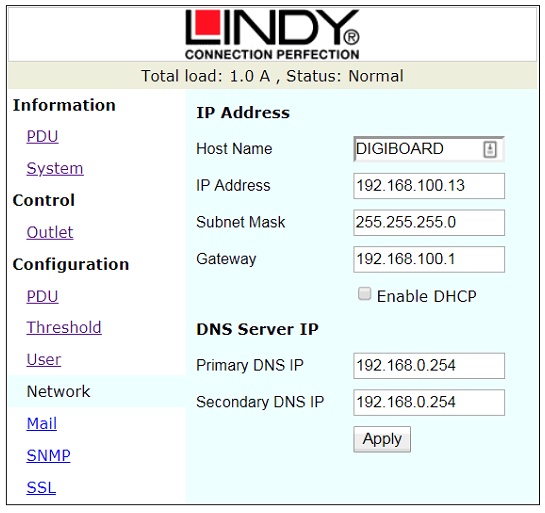

The Network tab shown above is where the IP address is configured. This should be set as per the approved system documentation.

Hostname - This should be set to the units AMT reference number so it can be found easily over the network.

IP Address - This should be configured as per the approved system documentation.

Subnet Mask - This should be configured as per the approved system documentation.

Gateway - This should be configured as per the approved system documentation.

The Enable DHCP flag should be unchecked and the DNS Server IP settings do not require further configuration.

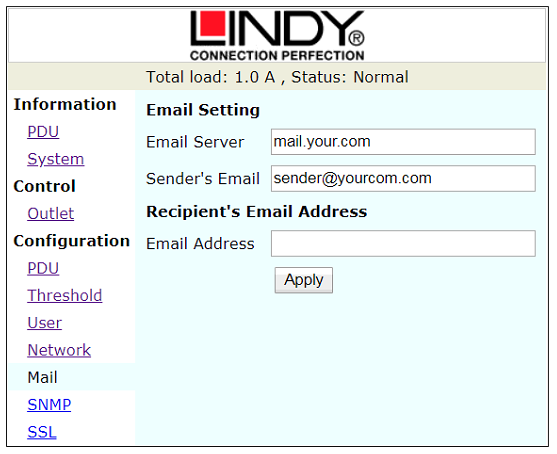

Email

In case of an SNMP-event or warning, the unit can be configured to send out an email message to a pre-defined account. This function only supports the input of an email server with a domain name.

The message in the email will show as below:

Indicate OutletA~H status order

0: means the power is off.

1: means the power is on.

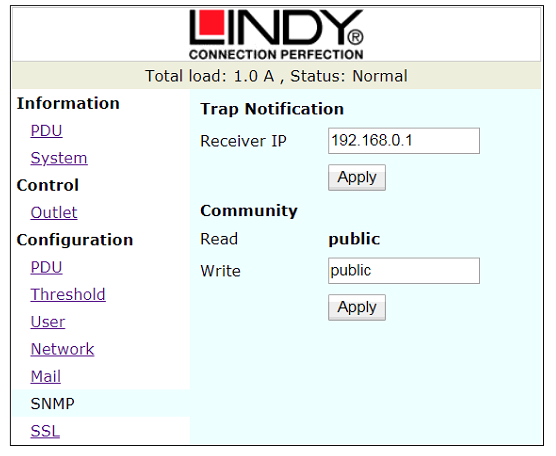

SNMP

Defines the IP address that event traps are sent to.

The default ID is “snmp”, the Password is “1234”.

In standard system this is not used.

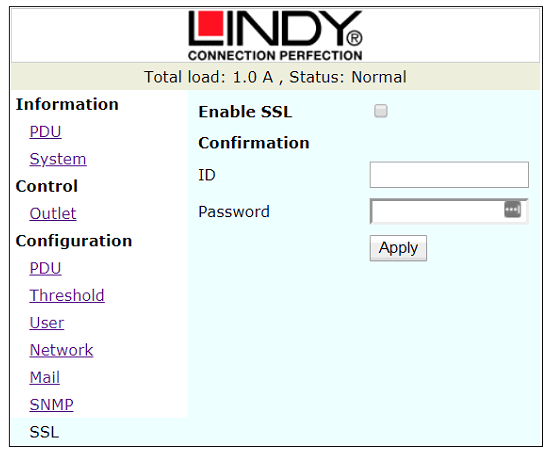

The final tab of Configuration is SSL (shown below). This tab is not used in standard configurations and should remain unchanged.

NTP / SMS Unit

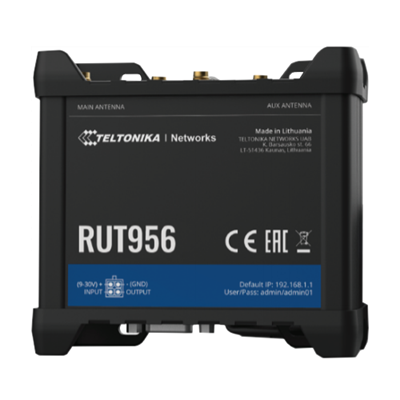

With all installationss of OS6 it is imperative that an NTP server is used. This connection can be supplied by the client but will otherwise be provided by Luna. If the NTP server provided by Luna is to be used, please follow the guide in Module 5 - Installing OS6.

For details regarding the modem’s specification, mounting and power requirements please refer to the manufacturer’s User Manual.

The GPS antenna should be connected to the GPS connection.

note

The modem is supplied with a GPS, Mobile (GSM) and WIFI Antenna which should be installed outside to ensure the best possible signal reception. Always refer to the systems approved system documentation to check if the other Antennas need to be connected to the unit.

Please note the RUT956 is the replacement for the RUT955

note

In most setups the system components will be connected through a gigabit switch as detailed on the approved system documentation. We do not recommend using the NTP unit as a network switch.

The modem should be installed into the equipment rack using the DIN rail kit, which screws onto the rear of the unit.

Software Setup

To get a connection from the CU to the modem, both need to be on the same network.

1. Change the IP address to be on the same network as the modem. The default IP address for the modem is “192.168.1.1”. The Subnet mask can be left as default.

2. The modems interface should now be accessible via an internet browser. Type 192.168.1.1 into the address bar and then press enter.

   The default login details are: Username: admin & Password: admin01**.**



When prompted to change the password, change it as per the system design drawings.

Before working through the Setup Wizard there are a few settings that needs to be configured.

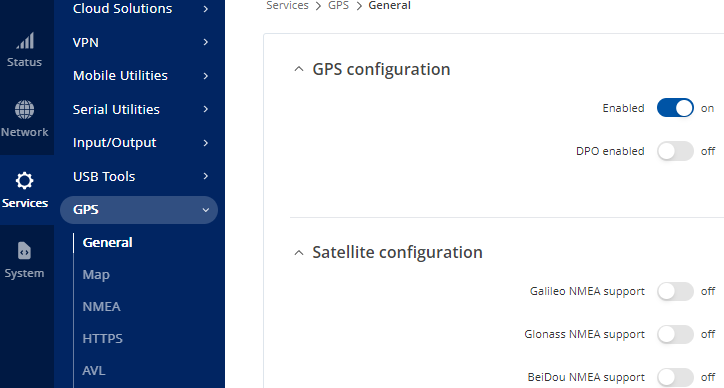

From the Services tab select GPS.

1. Select General and enable GPS Configuration.
2. Click Save & Apply.

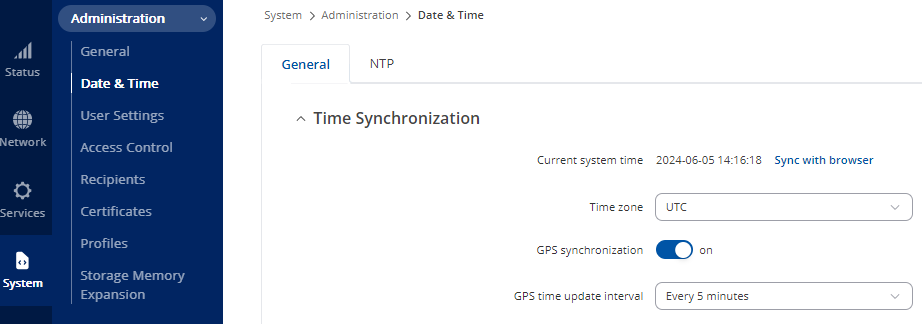

From the System tab go to Administration > Data & Time > General

1. Ensure UTC is selected for Time Zone.
2. Turn on GPS synchronisation and set the GPS time update interval to Every 5 minutes.
3. Click Save and Apply

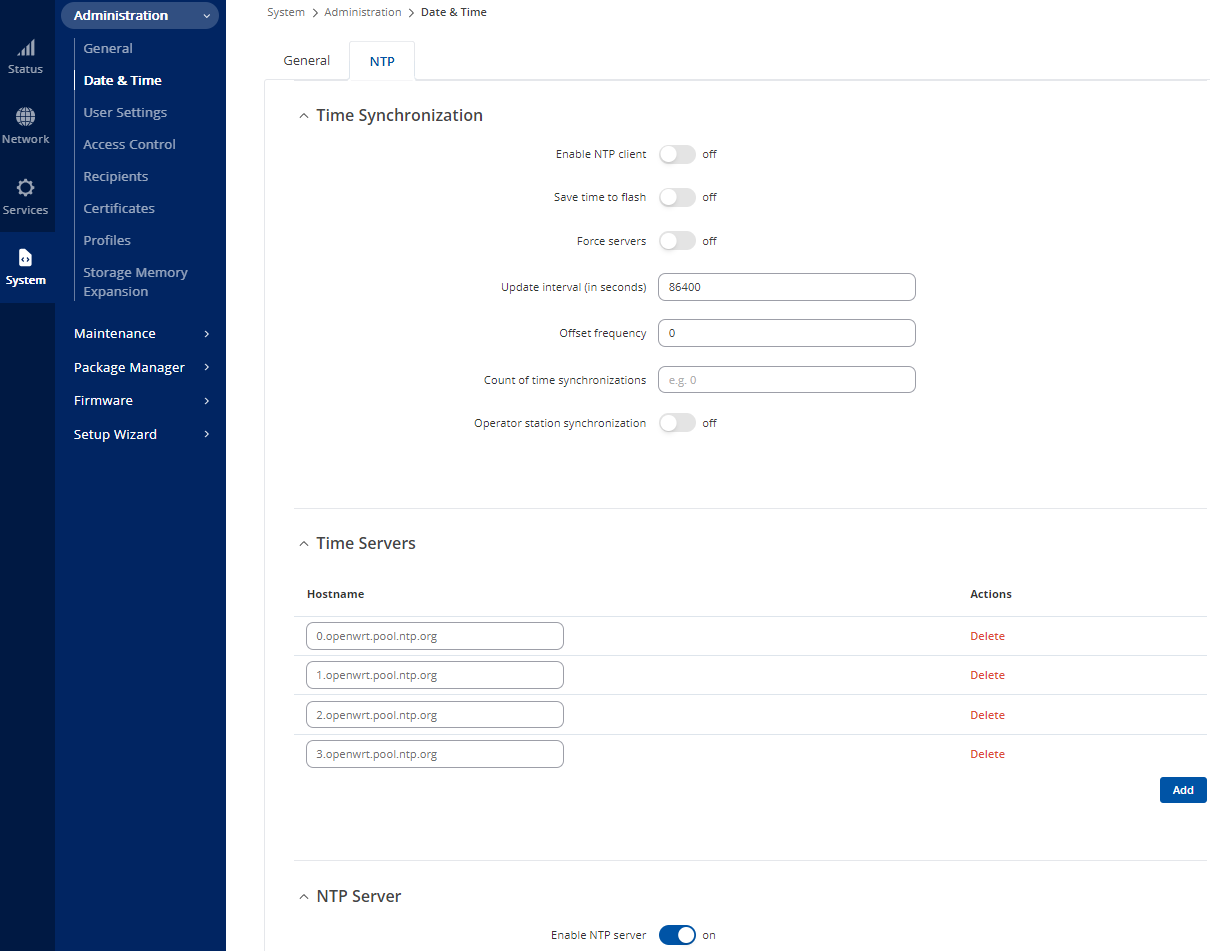

Still within section Data & Time, click the NTP tab.

1. Turn off Enable NTP client.
2. Enable NTP server
3. Click Save & Apply

Now you’re ready to open the Setup Wizard.

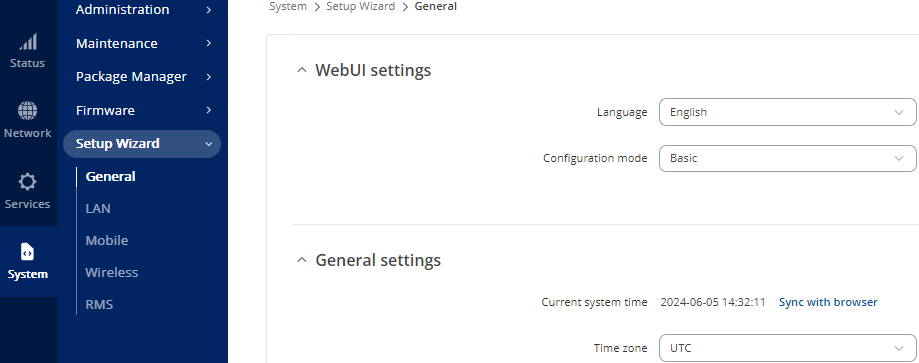

General Settings

From System select Setup Wizard > General.

1. Leave the settings as default, ensuring Time Zone is UTC.
2. Select Next

LAN

1. Set the required IP address and subnet mask.

   1. Turn off DHCPv4 and 6.

   2. Select Next

      note, if changing the modem to a different IP address range, the connection will be lost. Therefore, the machine configuring the modem will need to have it’s IP address changed also.

![LAN Configuration Window](media/5e7763f2d6644ce9b109d4fba4f91b10.png "LAN Configuration Window)

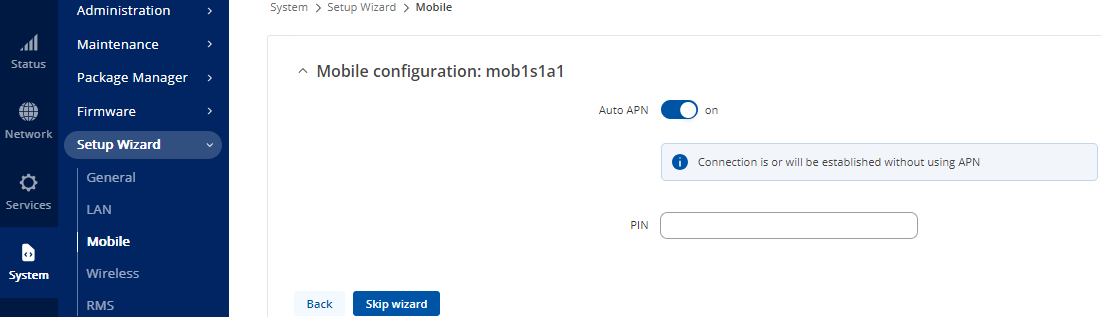

Mobile

No changes are required on this window so click Next.

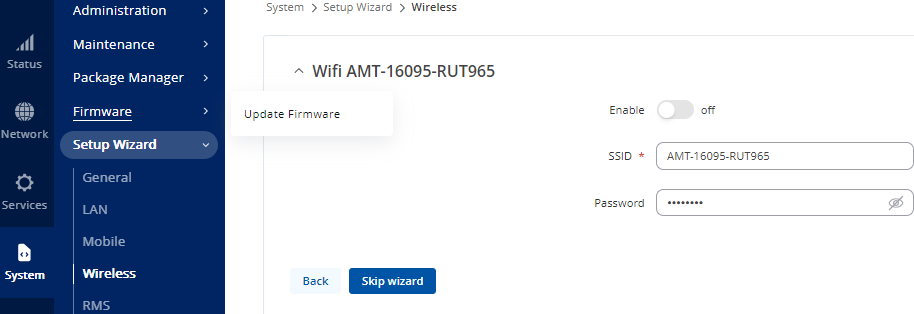

Wi-Fi

1. Turn off Enable.
2. In ESSID type the units AMT number and device name (AMT-xxx-RUT956).
3. Set the password and record this somewhere.
4. Select Next.

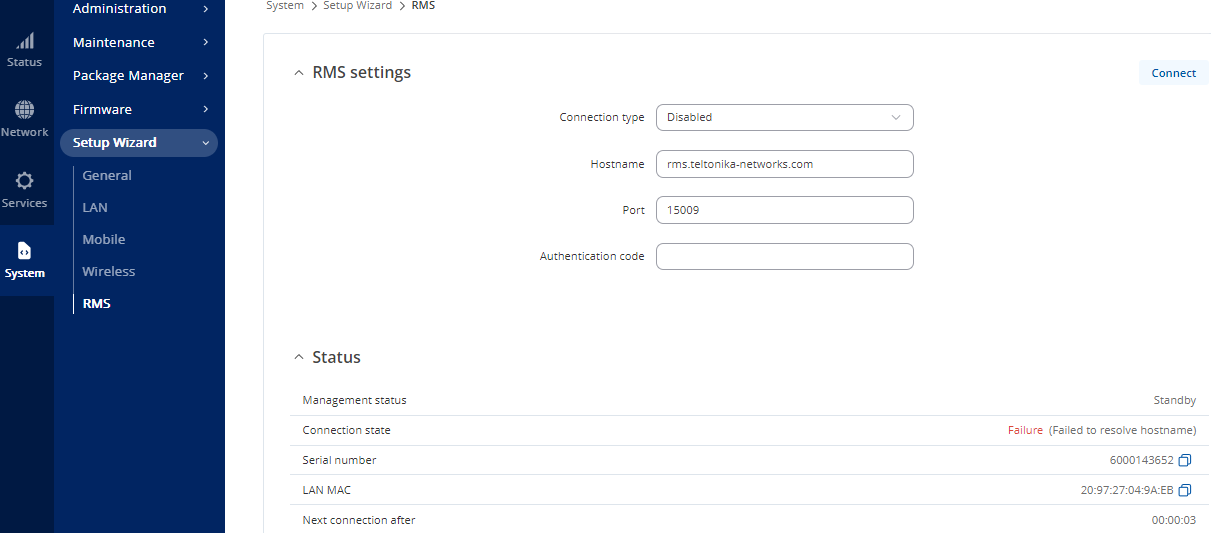

RMS

1. On Connection type, select Disabled.
2. Select Finish to complete the wizard.

System Administration Settings

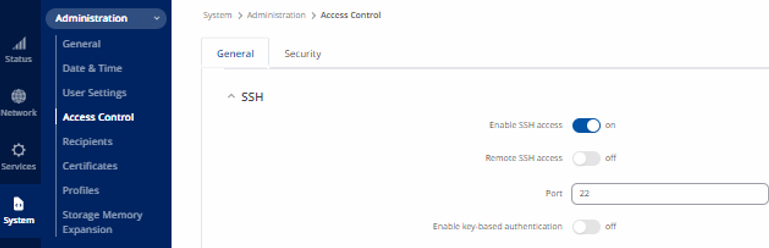

From System select Administration > Access Control > General

1. Turn on Enable SSH Access.
2. Select Save & Apply**.**

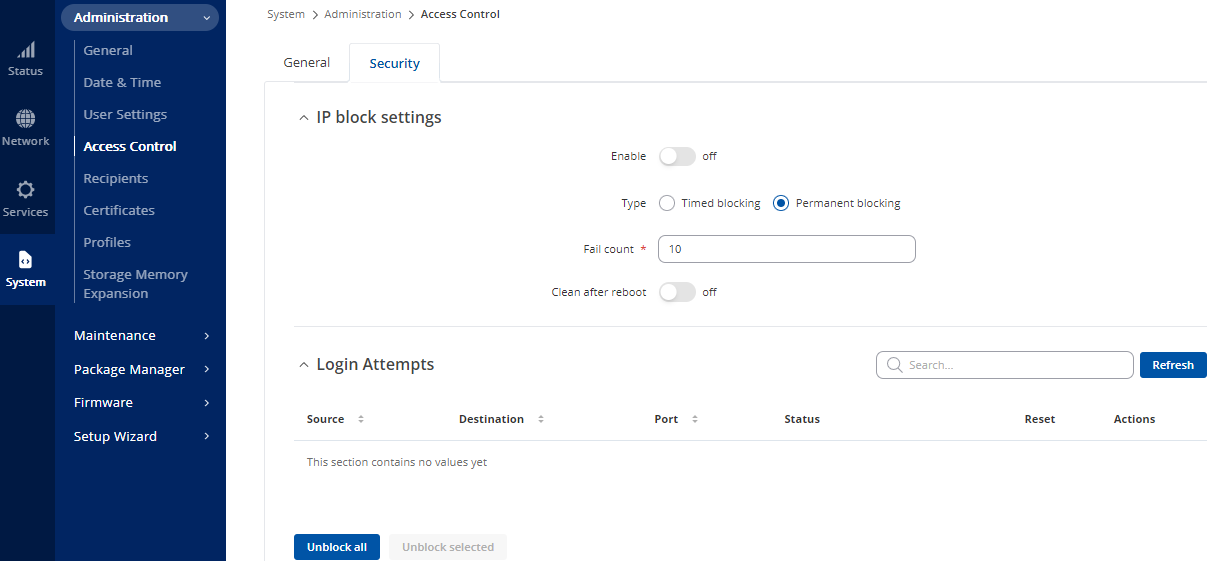

Still within section Access Control, click the Security tab.

1. Turn off Enable for IP Block Setting.
2. There should be no blocked IP addresses under Login Attempts.
3. Select Save & Apply.

Config Import and Export

A preconfigured config can be imported into the unit. It’s important the config is compatible with the unit’s model number and firmware version. Notice in the example file name bellow; Green: Model No - Red: Date Created.

Example: backup-Teltonika-RUT956.com-2024-06-06.tar

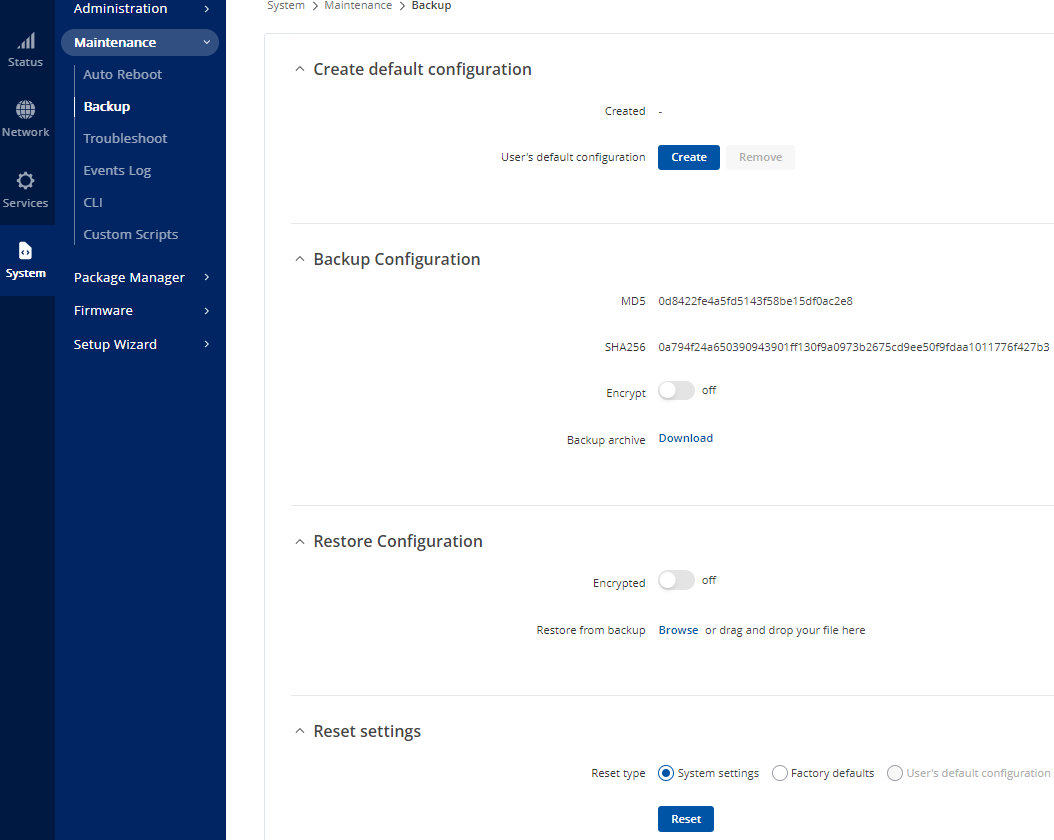

From the System tab go to Maintenance > Backup**.**

Here you will be able to choose between download or restore config.

Syncing CU / System to Modems NTP

To configure a CU to use the modem as an NTP time source.

1. In Windows search, type “date & time”, then press enter.
2. Select Additional Clocks”.
3. Switch to the Internet Time tab, then Change settings.
4. Type the modem’s IP address in the server box and select update now then OK.
5. The CU’s time zone can be set to the region it is in.

Troubleshooting

• If the control unit is inaccessible via the webpage control this could be because the logon password has been input incorrectly on multiple occasions. If this is the case, then change the IP address of your CU to an unused IP address. Log in to the Teltonika unit, navigate to System > Administration> Access Control > Security and remove the blocked IP address. After removing the blocked IP address change the IP address back to the original IP address. This can be done remotely if the CU has internet access.

• The modem has capacity for two SIM cards. This is to provide redundancy if one of the cards were to fail. Note: If another card were to be added the unit would need a reboot.

• If the Teltonika unit is sending messages but messages are not being sent from the OS6 Software, firstly check that SMS has been licensed, if this does not resolve the issue then check that SSH has been enabled by going to System > Administration> Access Control > General.

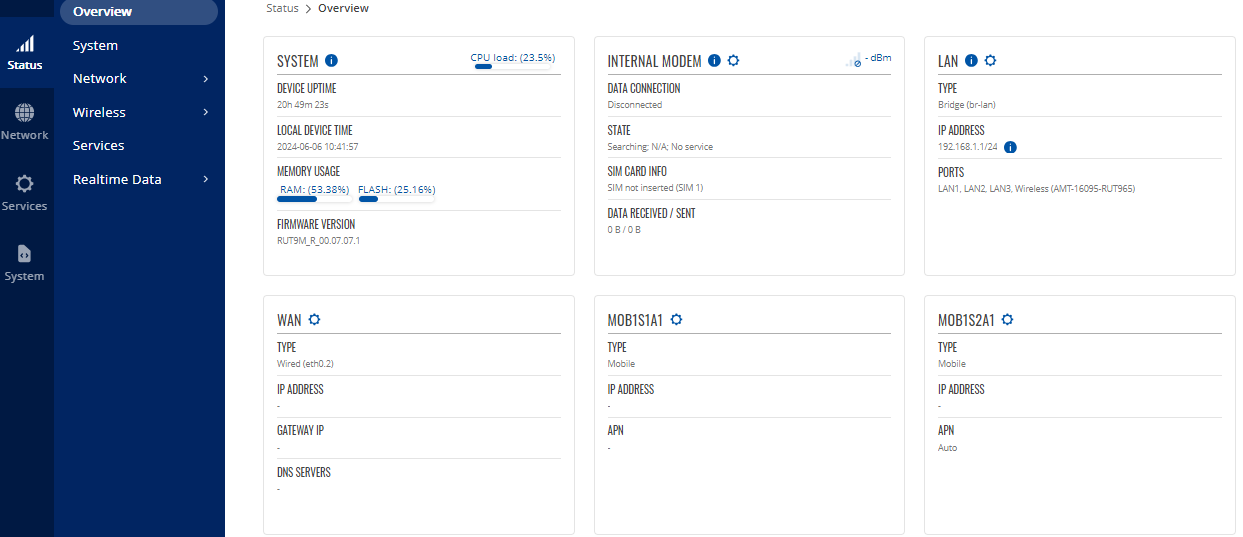

• If the modem isn’t behaving as expected there is a systems overview page. This can be accessed by logging into the web interface and selecting Overview from the Status tab.

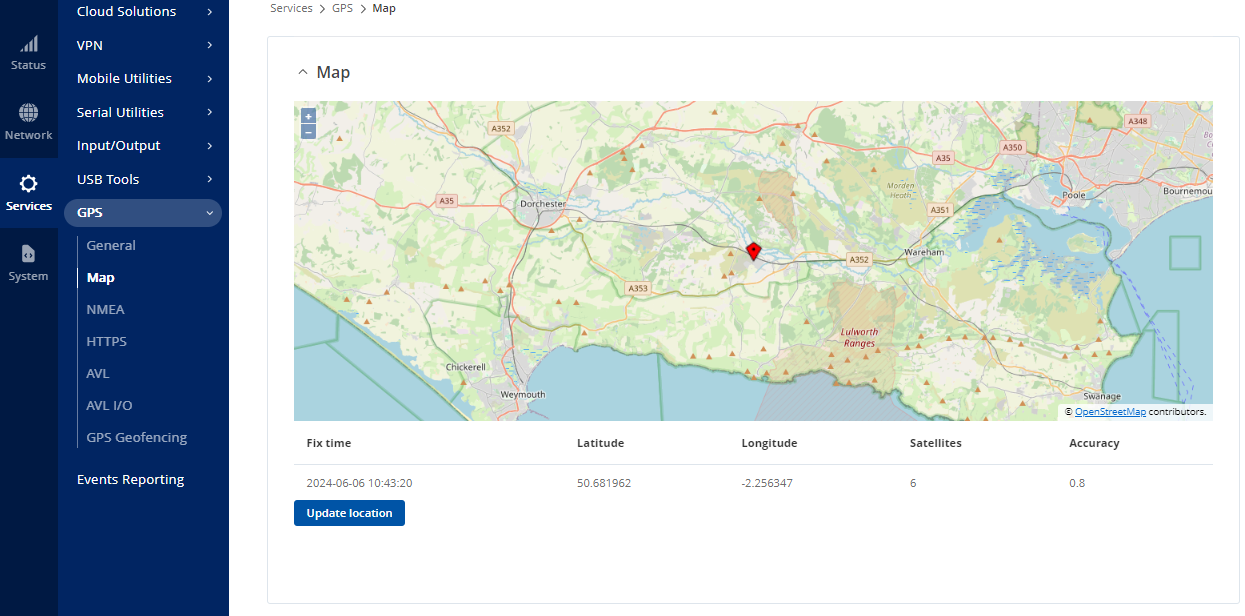

• For confirmation that the unit has acquired a GPS signal, from the Services tab, go to GPS > Map. If a GPS signal has been obtained, a map of the geographical location and red pinpoint will be displayed. To check it can update, click the Update location button and the current date and time should be displayed. If this fails then the GPS antenna and cables should be checked.
